Introduction

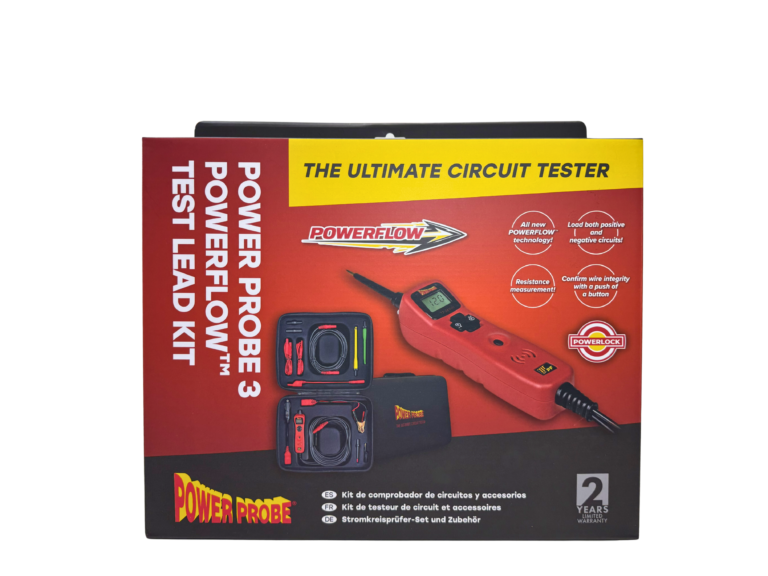

The Power Probe 3 PowerFlow™ Diagnostic Lead Set Kit goes beyond basic circuit testing by actively applying a controlled load to verify wiring integrity under real-world conditions. Measure voltage, resistance, power components with battery voltage or ground, and identify hidden wiring faults faster with PowerFlow™ Technology. The included lead set expands testing flexibility with PowerLock™ connectivity and a secure 4mm banana jack ground system. Featuring Min/Max capture, a built-in latch function, and a 10A self-resetting circuit breaker, this kit helps technicians diagnose electrical problems with greater speed, accuracy, and confidence.
Features
PowerFlow™ Circuit Loading Technology
Actively load positive or negative circuits to verify wiring integrity under real operating conditions. PowerFlow™ helps expose voltage drops, weak grounds, high resistance, corrosion, damaged wiring, and poor connections that may go undetected during conventional no-load voltage testing.
Professional Lead Set Included
Expand your diagnostic capabilities with a versatile lead set designed to access hard-to-reach connectors and circuits. The included accessories provide greater flexibility for testing, back-probing, and troubleshooting a wide range of automotive electrical systems.
PowerLock™ Accessory System
The integrated PowerLock™ 4mm locking banana jack securely retains compatible accessories during testing, reducing accidental disconnections while maintaining compatibility with standard 4mm banana plug test leads and adapters.
Apply Battery Power or Ground
Supply 12V or 24V battery power or ground directly to components for rapid functional testing. Quickly verify the operation of motors, relays, lights, solenoids, and other electrical devices without additional equipment.
Resistance Measurement up to 25 kΩ
Measure resistance from 1Ω to 25 kΩ to identify high-resistance faults, verify component integrity, and pinpoint corrosion, poor connections, or damaged wiring that may affect system performance.
10A Solid-State Circuit Breaker
An integrated 10-amp self-resetting circuit breaker protects both the tool and vehicle circuits while allowing higher-current component activation. Ideal for testing demanding electrical loads with added confidence and automatic recovery.
Built-In Electronic Latch Function
Electronically latch battery power or ground to a circuit without continuously holding the power switch. This hands-free capability simplifies extended component activation, repetitive testing procedures, and dynamic diagnostics.
Quick-Connect 4mm Ground Lead
The 4mm banana jack ground connection provides a secure, reliable interface for extensions, adapters, and specialized test leads. It offers improved flexibility over traditional alligator clips while supporting a wide range of diagnostic accessories.
